Mobble (Huldenberg, Belgium)

• Huldenberg Pilot
  3D model by padraig.mcalister
• Housing 4.0 Energy
  Case Study 3

This project consists of low-carbon prefabricated timber frame container units including variable living layout designs.

• Year of construction: 2021
• Construction Type: Timber construction. NZEH/ZEH small - 46m² for 1 bedroom and 63m² for 2 bedrooms - detached modular dwellings. Built entirely in workshop & transported to site

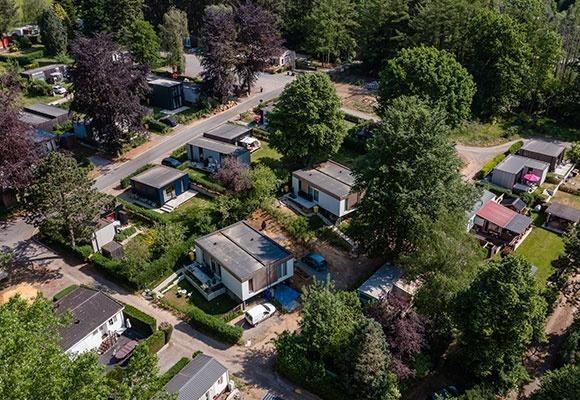

• Location: former campsite Rustenberg, in Huldenberg, province of Flemish Brabant (Belgium)

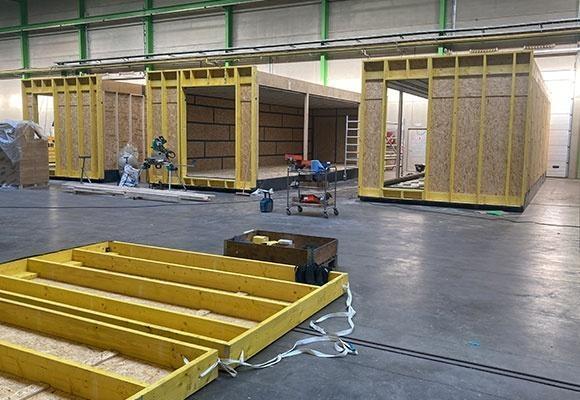

Watch here the timelapse of the fabrication, transport and installation of the 6 units.

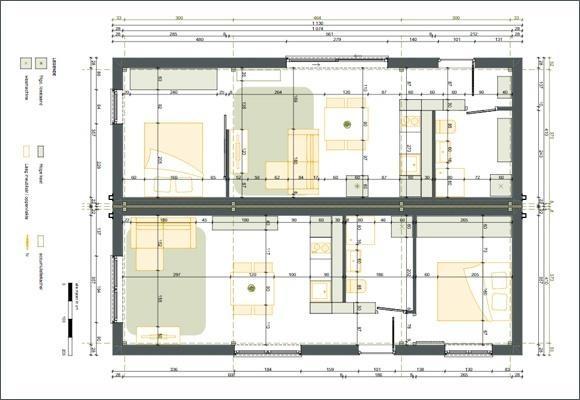

Zone A | Type Ak (variation 1)  | 46m² for 1 bedroom

• Interior variation:
  Separate bedroom adjoining the living room
  Kitchen & Bathroom comprised by SAM (Smart Adaptable Module) by Bao Living
• Mechanical systems/Ventilation system:
  Radiation heating panels using infrared heat + towel dryer in bathroom, electric boiler 80L, ventilation type C+
• Treated Floor Area: 34,22 m²
• Glazing Type : Finstral PVC-windows and terrace doors | Uw–value: 1,2 W/m²K Ug–value: 0,65 W/m²K
• Door Type: Finstral PVC-glazed door (same as windows) | Uw–value: 1,2 W/m²K Ug–value: 0,65 W/m²K
• Heating Demand: 65kWh/m²a

Zone A | Type A (variation 2)  | 46m² for 1 bedroom

• Interior variation:
  1 bedroom with sliding partition
  Kitchen & Bathroom comprised by SAM (Smart Adaptable Module) by Bao Living
• Mechanical systems/Ventilation system:
• Accumulation heater + towel dryer in bathroom, electric boiler 80L, ventilation type C+
• Treated Floor Area: 34,22 m²
• Glazing Type : Finstral PVC-windows and terrace doors | Uw–value: 1,2 W/m²K Ug–value: 0,65 W/m²K
• Door Type: Finstral PVC-glazed door (same as windows) | Uw–value: 1,2 W/m²K Ug–value: 0,65 W/m²K
• Heating Demand: 65kWh/m²a

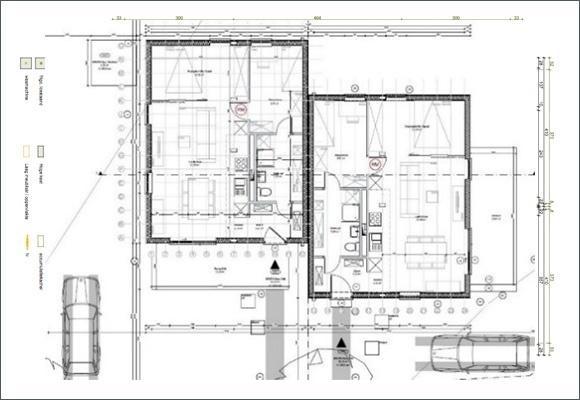

Zone B | Type B | 63m² for 2 bedrooms

• Interior variation:
  1 master-bedroom adjoining the living room with sliding wall and 1 separate bedroom.
  Recuperation kitchen by Domus Mundi - Bathroom from Ecopuur
• Mechanical systems/Ventilation system:
  Air-to-Air heat pump, infrared-panel on bathroom ceiling, ventilation type D+ (entirely mechanical),Photovoltaics
• Treated Floor Area: 50,60m²
• Heating Demand: 43kWh/m²a
